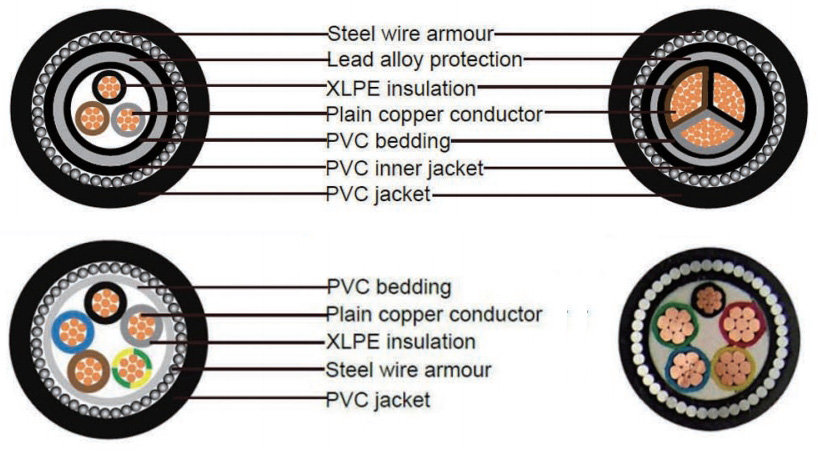

1-3kV XLPE/PVC Insulation Power Cable

This kind of cable is applied to the A. C power transmission and distribution line with rated voltage of 0.6/1kV and 1.8/3.0kV.

Standards:

1.GB/T12706.1-2008(Equivalent to IEC60502-1:2004) Rated voltage 1kV(Um=1.2kV) to 35kV(Um=40.5kV) power cable with extruded insulation and accessories. Part 1: Rated voltage 1kV(Um=1.2kV) and 3kV(Um=3.6kV) power cable;

2.GB/T19666-2005: General scope of flame retardant and fire resistant wire and cable.

Property of The Cable:

1.The allowable highest long-term working temperature of the PVC cable is 70℃ , XLPE cable is 90℃ ;

2.Short circuit time lasts no more than 5 seconds, the highest temperature of the cable conductor is 160℃ ;

3.Installation temperature for PVC cable shall not be lower than 0℃ for PE cable -20℃ ;

4.Installation: direct buried, overhead, in duct, in pipe, in channel, in suspended system, on bridge, up right, etc.

Package:

The cable has to be rolled neatened in the drum and package well, it should meet standard JB/T8137-2013, the cable end need to sealed, the cable end out of drum need to be protected by plastic cover and the length of out drum less 300mm. There has to be some necessary information on the cable package, such as: manufacturer name, cable name, size, rated voltage, quantity, quality, manufacturer date, standard and identify information and right rolled direction.

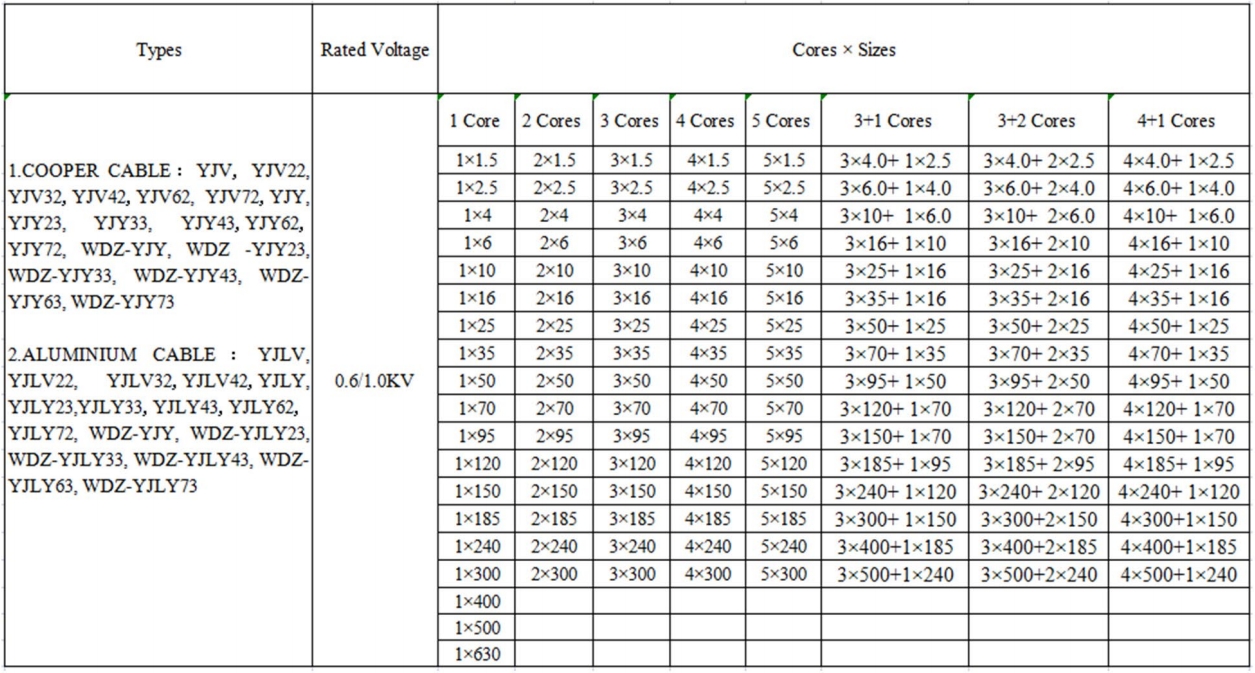

Type & Specification:
