XLPE/PVC Insulation Control Cable

This kind of cable is designed for loop connection with rated voltage up to 450/750V electrical system’s control of operating, monitoring and protecting.

Standards:

1. GB/T 9330-2008 Plastic insulation control cable;

2. GB/T19666-2005: General scope of flame retardant and fire resistant wire and cable.

Property of The Cable:

1.A.C rated voltage: 450/750V;

2.The highest long-term working temperature of the cable conductor: XLPE insulation: 90℃, PVC insulation: 70℃;

3.The ambient temperature of installation shall not be lower than 0℃.

Package:

The cable has to be rolled neatened in the drum and package well, it should meet standard JB/T8137-2013, the cable end need to sealed, the cable end out of drum need to be protected by plastic cover and the length of out drum less 300mm. There has to be some necessary information on the cable package, such as: manufacturer name, cable name, size, rated voltage, quantity, quality, manufacturer date, standard and identify information and right rolled direction.

Type & Specification:

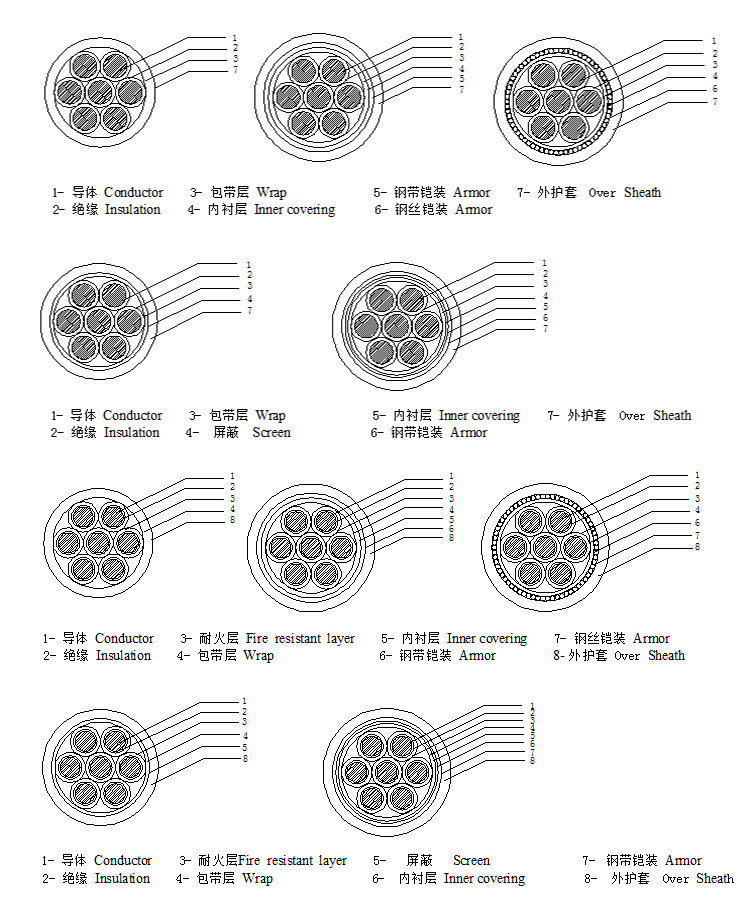

1.Type: KVV, KVVP, KVVP2, KVV22, KVVR, KVVRP, KVVP2-22, KYJV, KYJVP, KYJVP2, KYJV22, KYJVR, KYJVRP, KYJVP2-22;WDZ-KYJVP2-22;

2.Flame retardant, low smoke, halogen free;

3.Number of cores:2-61;

4.Nominal sectional area: 0.5-6mm².
