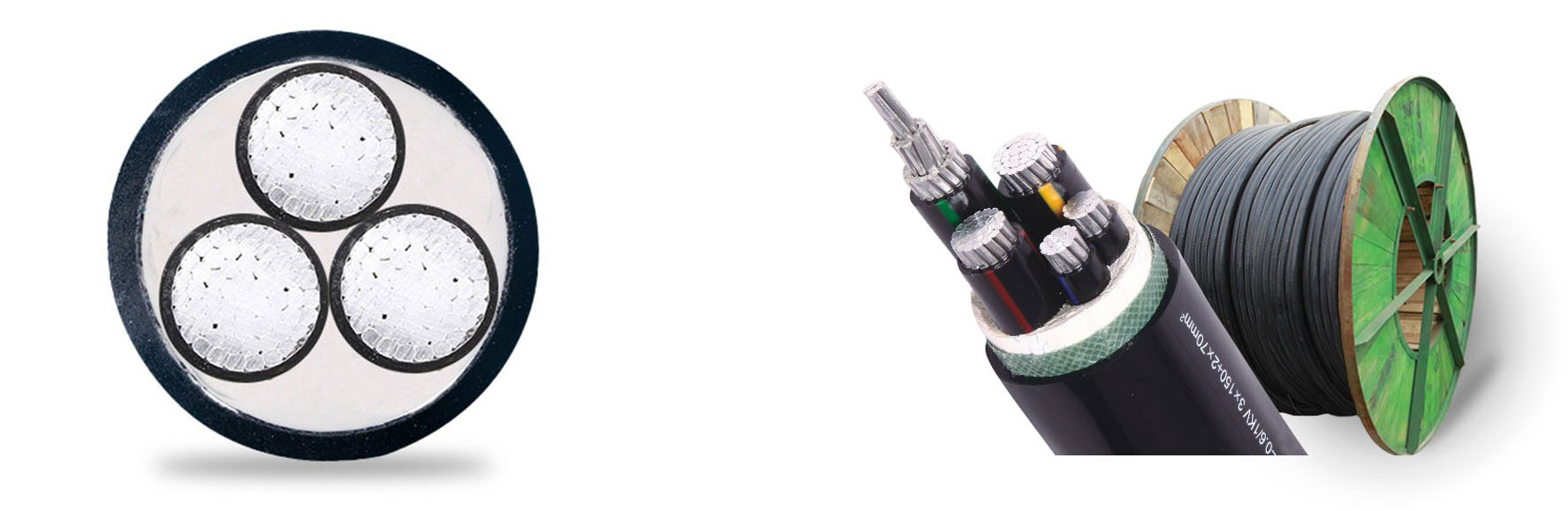

Aluminium Alloy Cable

The Aluminum Alloy Cable is suitable for power transmission and distribution of power grid up to 35kV.Comparing with other power cables, this cable not only has the advantages of light weight,good flexibility, strong bearing capacity, but also has the advantage of simple construction,easy to use,free from laying drop,enduring high long operating temperature etc.

Standards:

GB/T 31840-2015: Extruded Aluminum Alloy conductor power cable with rated rated voltage from 1kV(Um=1.2kV to 35kV(Um=40.5kV)

GB/T 19666-2005 Fire retardant and fire resistant electric cable: General

Property of The Cable:

The conductor is 8000 series Aluminum Alloy conductor, applicable for 600V-35kV voltage system 90 ℃ in dry or wet place installation;

Min Bending radius is 7 times of the cable outer Diameter, 360°bending for interlocking armor cable. Applicable to civil, commercial, industrial, large venues, entertainment venues, mines, subways and various dangerous areas.

Package:

The cable has to be rolled neatened in the drum and package well, it should meet standard JB/T8137-2013, the cable end need to sealed, the cable end out of drum need to be protected by plastic cover and the length of out drum less 300mm. There has to be some necessary information on the cable package, such as: manufacturer name, cable name, size, rated voltage, quantity, quality, manufacturer date, standard and identify information and right rolled direction.

Type and Specificiation:

Aluminum alloy conductor: YJLHV, YJLHV22, YJLHS, YJLHVS2;

Type codes: fire retardant ZC-ZB-ZA; fire resistant ZCN-ZBN-ZAN; LSHF WDZ-WDZB-WDZA;

Type of armor: STA Aluminum alloy tape interlocking armor SWA;

Cross-Sectional Areas:

0.6/1 kV cross-sectional areas: 10-630mm²;

8.7/10kV 8.7/15kV 26/35 kV: cross-sectional areas: 35- 630mm².
